Legrand MCB’s
Legrand’s Miniature Circuit Breakers (MCB’s) comply with ISI and CE standards, ensure flexibility and help avoid short circuits. Suitable for copper and aluminium cables lasting for up to 13 years. DX3 range circuit breakers have revolutionary design & compatible with a wide range of products, with high performance levels. DX3 MCB’s offers maximum safety, ease of installation & superior quality.
Request a Quote
Features & Benefits for
MCB’s
- ISI & CE Marking
- Low Watt Loss
- Flexibility
- 20,000 Operations
- IP 20 terminals to keep you safe
- No line load bias
- Bi-connect terminals to give you connectivity options
- Suitable for isolation
- Self lifting terminals to provide an effective connection
- Operating temperatures to suit all weather conditions
DX3
DX3 is an international range of protection devices / circuit breakers with revolutionary design that can be integrated with a wide range of products, providing exceptional technical performance levels. DX3 MCB’s offers maximum safety, ease of installation and impeccable quality.
With complete DX3 range wiring and tedious tightening operations are minimized, and the risks of poor contact and short-circuits are reduced, while mounting time is optimized.
Legrand DX3 MCB’s range offers
- MCBs for AC applications till 63 A
- MCBs for AC applications from 80 A to 125 A
- MCBs for DC applications till 63 A
- Thermal Magnetic MCBs from 6 A to 125 A (DX3 MCBs – 25kA)
- Thermal Magnetic MCBs from 10 A to 80 A (DX3 MCBs – 36 kA)
- Thermal Magnetic MCBs from 10 A to 63 A (DX3 MCBs – 50 kA)
Technical Specifications
- ISI marked as per IEC 60947-2
- Integrated label holder
- Sliding insulating shield / bottom clamp
- Improved air channels
- Color coded ON/OFF indication on dolly
- IP 20 protected terminals
- Sliding shutters
DX3 – MCB AC Application from 80-125 A

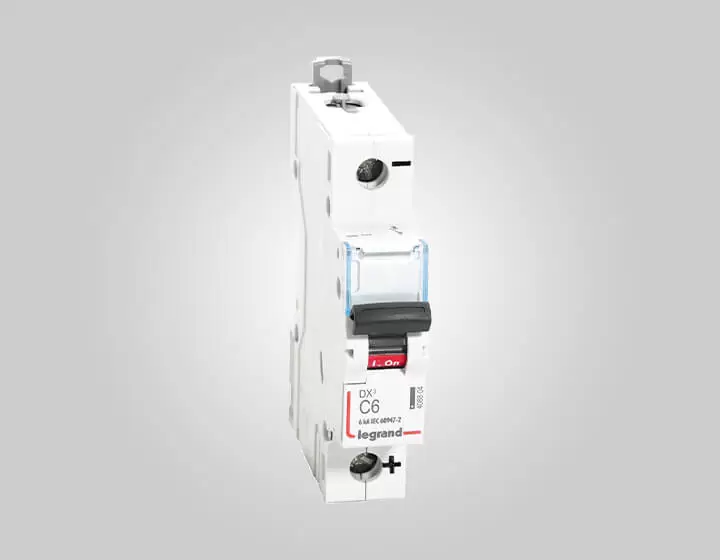

DX3 – MCB DC Application upto 63A
DX3 – 16 kA MCB from 63 A – 125 A

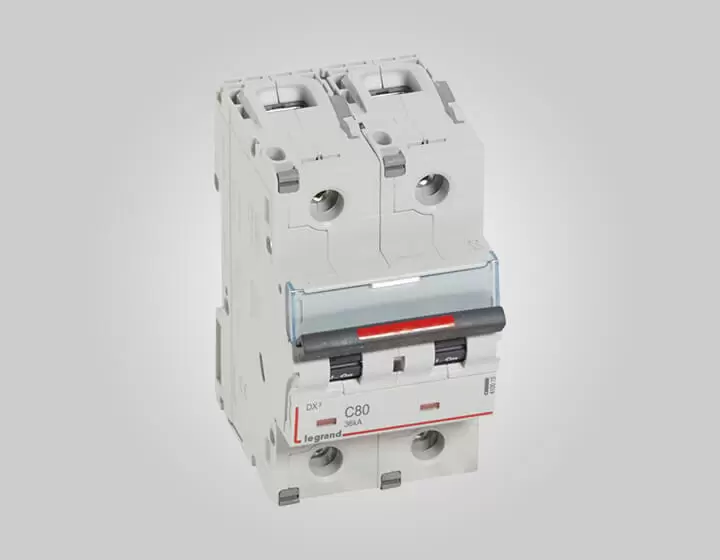

DX3 – 36 kA MCB from 10 A to 80 A
